Teltonika TSF000 LOW PROFILE POE+ SWITCH

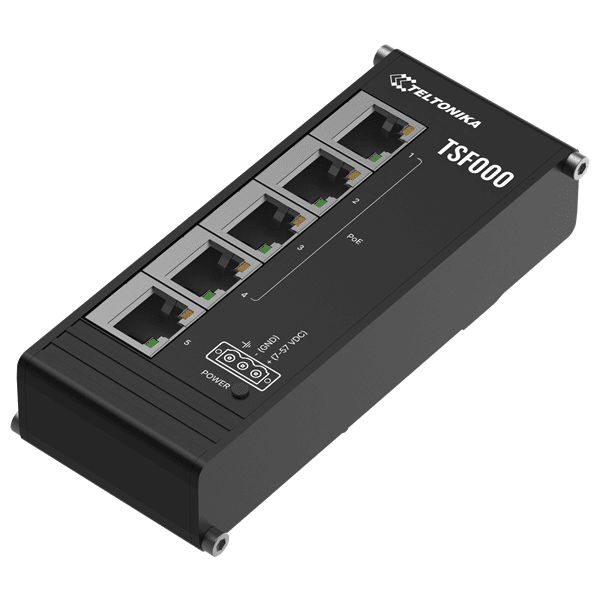

Teltonika TSF000 – Industrial PoE+ Ethernet Switch

The Teltonika TSF000 is a compact, low-profile industrial Ethernet switch designed for installations where space, power efficiency and reliability matter. Built to sit neatly alongside cellular routers, gateways and controllers, it delivers both data and power over Ethernet from a single DC input, reducing cabling complexity and installation time.

This is an unmanaged switch by design. No configuration, no software overhead, no learning curve. Just stable Ethernet and PoE+ delivery in a tough industrial enclosure.

Key Features

• 4× PoE+ Ethernet ports for powering cameras, access points and IoT devices
• Total PoE power budget up to 120 W (shared across PoE ports)
• 5× Fast Ethernet ports with front-facing access
• Wide DC power input (7–57 V DC) suitable for industrial power systems
• Low-profile metal housing for tight cabinet and enclosure installs
• DIN rail mounting for fast, secure installation
• Unmanaged, plug-and-play operation

Product Overview

The TSF000 is designed for real-world industrial and commercial deployments where PoE devices need to be powered reliably without cluttering enclosures with multiple power supplies. By combining data and power delivery over standard Ethernet cabling, it simplifies installations and reduces points of failure.

Its low-profile form factor makes it especially useful in shallow cabinets, wall-mounted enclosures, control panels and retail installations where depth is limited. The wide DC input range allows the switch to run from typical industrial power rails, battery systems or shared power supplies already feeding routers and controllers.

This makes the TSF000 a natural companion for industrial 4G and 5G routers, CCTV systems, access control hardware and smart building equipment.

Typical Applications

• CCTV and video surveillance systems
  Power and connect multiple PoE cameras from a single switch.

• Industrial cellular deployments
  Pair with a 4G or 5G router to distribute connectivity to edge devices.

• Wireless access points
  Deliver both data and power without separate injectors or adaptors.

• Smart buildings and automation
  Connect sensors, controllers, intercoms and PoE terminals.

• Retail, kiosks and digital signage
  Ideal where compact, reliable networking hardware is required.

Technical Specification

Why Choose the TSF000?

The TSF000 isn’t trying to be clever. It’s designed to be dependable.

If you need VLANs, monitoring and remote management, Teltonika’s managed switch range covers that. If you just need solid Ethernet and PoE that works all day, every day, the TSF000 does exactly that, with minimal cost, minimal complexity and minimal footprint.

It’s the kind of switch engineers choose when they don’t want to think about the switch again once it’s installed.

What’s in the Box

• Teltonika TSF000 Industrial PoE+ Ethernet Switch
• Pre-installed DIN rail mounting clip
• Quick start documentation
