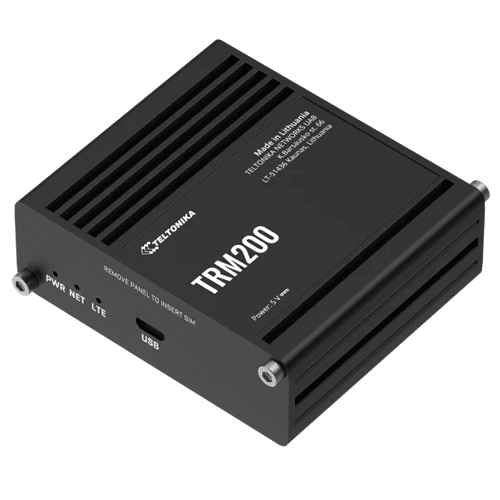

Teltonika TRM200 Industrial 4G Cat 4 Modem
The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.
- CONNECTIVITY – 4G Cat 4, 3G, 2G
- MICRO USB – For powering and data connectivity
- EXTERNAL ANTENNA – For enhanced network reliability
- COMPACT & DURABLE – Small size, easy installation
£60.00 Excl VAT
The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.
- CONNECTIVITY – 4G Cat 4, 3G, 2G
- MICRO USB – For powering and data connectivity
- EXTERNAL ANTENNA – For enhanced network reliability
- COMPACT & DURABLE – Small size, easy installation
Specification
-
Mobile module
4G – Cat 4 up to 75 DL/50 UL Mbps, 3G – Up to 42 DL/5.76 UL Mbps, 2G – Up to 236.8 DL/ 236.8 UL kbps
-
3GPP Release
Release 9
-
Connector
microUSB
-
Input voltage range
5V – powered via microUSB
-
Power consumption
Idle: < 0.9 W, Max: < 3.2 W
-
Status LEDs
1 x Power LED, 1 x Network LED, 1 x Mobile LED
-
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
-
Power
1x microUSB
-
Antennas
1 x SMA for Mobile
-
Casing material
Aluminium housing
-
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
-
Weight
274 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
-
TRM SOFTWARE USB Driver RUT#03
Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0
-
NDIS Driver
Windows 7/8/8.1/10
-
Regulatory
CE, UKCA, CB, EAC, UCRF, WEEE
Based on 0 reviews
Be the first to review “Teltonika TRM200 Industrial 4G Cat 4 Modem”
