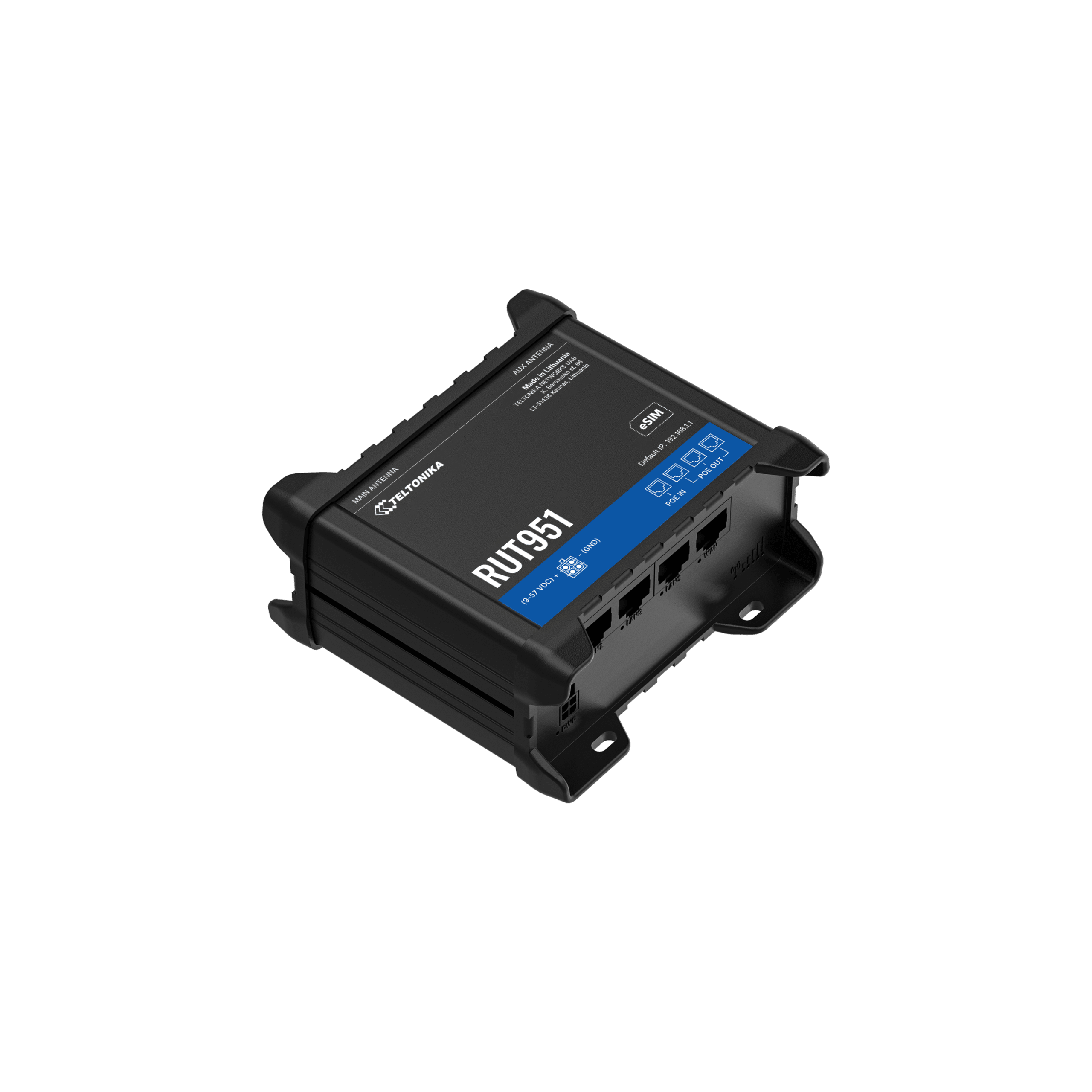

Teltonika RUT951 POE+ 4G Router
The Teltonika RUT951 PoE+ is an industrial 4G LTE Cat 4 router with a built-in PoE+ switch, offering reliable connectivity for harsh environments. Featuring dual SIM slots, VPN support, and wide-temperature operation (-40°C to +75°C), it’s ideal for surveillance, IoT, and remote monitoring. Includes 3x PoE+ ports (30W each) for powering devices.
Key Features:
- 4G LTE Cat 4 – 150Mbps max download speeds with dual-SIM failover
- Built-in PoE+ Switch – 1x PoE IN + 3x PoE OUT (30W each, 60W total)
- Industrial Durability – Operates in extreme temps (-40°C to +75°C), IP30 metal casing
- Advanced Security – VPN (IPsec/OpenVPN/WireGuard), firewall, remote management (RMS)
- Versatile Connectivity – Dual-band Wi-Fi, RS232 serial, and Gigabit Ethernet ports
- Dual SIM / eSIM – flexible IoT SIM options for maximum resilience.
£176.00 Excl VAT
RUT951 POE+ Industrial 4G Router with Dual SIM/ eSIM and 3 x POE+ Out and POE In
Teltonika RUT951 PoE+ Industrial Router – Reliable 4G LTE Cat 4 with PoE+ Power
Industrial-Grade Networking with Built-In Power over Ethernet
At [Your Company Name], we specialise in robust connectivity solutions, and the Teltonika RUT951 PoE+ stands out as the ideal choice for demanding industrial applications. This rugged router combines 4G LTE Cat 4 connectivity with advanced Power over Ethernet (PoE+) capabilities, making it perfect for remote monitoring, surveillance, and industrial automation.
Key Features & Benefits
✔ 4G LTE Cat 4 Connectivity – 150Mbps download speeds
✔ Built-in PoE+ Switch – Power devices directly via Ethernet
✔ Dual SIM with Automatic Failover – Uninterrupted connectivity
✔ Industrial-Grade Durability – Operates from -40°C to +75°C
✔ Advanced Security – VPN, Firewall & Remote Management
✔ Versatile Power Options – 12-48V DC or PoE input
Technical Specifications
| Feature | Specification |
|---|---|
| Cellular Connectivity | LTE Cat 4 (150Mbps DL/50Mbps UL) |
| Supported LTE Bands | FDD: B1/B3/B7/B8/B20/B28 |
| SIM Slots | Dual SIM (1x Micro + 1x Nano) |
| Ethernet Ports | 1x PoE IN + 3x PoE OUT (30W each) + 1x LAN |
| Wi-Fi | Dual-band 2.4GHz & 5GHz (802.11ac) |
| Serial Interface | RS232 for industrial devices |
| Power Input | 12-48V DC or PoE IN (802.3at) |
| Operating Temperature | -40°C to +75°C |
| Security Features | IPsec, OpenVPN, WireGuard, Firewall |
| Management | Teltonika RMS, Web UI, SNMP |
Complete PoE+ Power Solution
The RUT951 PoE+ simplifies installations with its innovative PoE architecture:
- 1x PoE IN Port – Can be powered via PoE (802.3at)
- 3x PoE+ OUT Ports – Deliver 30W each (802.3at)
- Total 60W PoE Budget – Powers multiple devices
Ideal for:
- IP surveillance cameras
- Wireless access points
- VoIP phones & intercom systems
- Industrial sensors & IoT devices
Perfect for These Applications
1. Industrial Monitoring & Automation
- Remote PLC connectivity
- SCADA system communications
- Predictive maintenance solutions
2. Smart Security & Surveillance
- CCTV systems with PoE cameras
- Traffic monitoring solutions
- Perimeter security networks
3. Transportation & Mobile Systems
- Fleet management telematics
- Onboard vehicle connectivity
- Mobile command centres
4. Energy & Utility Networks
- Solar farm monitoring
- Oil/gas pipeline communications
- Smart meter data collection
Teltonika RUT951 POE+ – Technical Specifications
| Category | Specification |
|---|---|
| Mobile Module | 4G LTE Cat 4 (up to 150 Mbps DL / 50 Mbps UL), 3G (up to 21 Mbps DL / 5.76 Mbps UL), 2G (up to 236.8 kbps) |
| 3GPP Release | Release 10/11 (hardware dependent) |
| SIM Management | 2 x Mini SIM (2FF), auto-switch (weak signal, data/SMS limit, roaming, no network, network denied, data fail, SIM idle protection), SIM PIN management |
| eSIM | Consumer type, up to 7 profiles, profile download/removal, no data plans included |
| Status Monitoring | IMSI, ICCID, operator/state, data conn. state, network type, bandwidth, connected band, signal (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS/USSD | SMS status, config, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP, USSD send/read |
| Operator Block/Allow | By country or operator |
| Multiple PDN | Supported |
| Band Management | Band lock, used band status display |
| APN | Auto APN |
| Bridge/Passthrough | Direct bridge, WAN IP passthrough to LAN device |
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), AP/STA, up to 100 users, fast roaming (802.11r), mesh, BSS transition (802.11v), 802.11k |
| Wi-Fi Security | WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS (PKCS#12), 802.11w PMF |
| SSID/ESSID | Stealth mode, MAC-based access control |
| Wireless Features | Fast roaming, relayd, BSS transition, radio resource measurement, MAC filter (allowlist/blocklist), QR code generator, TravelMate hotspot forwarding |

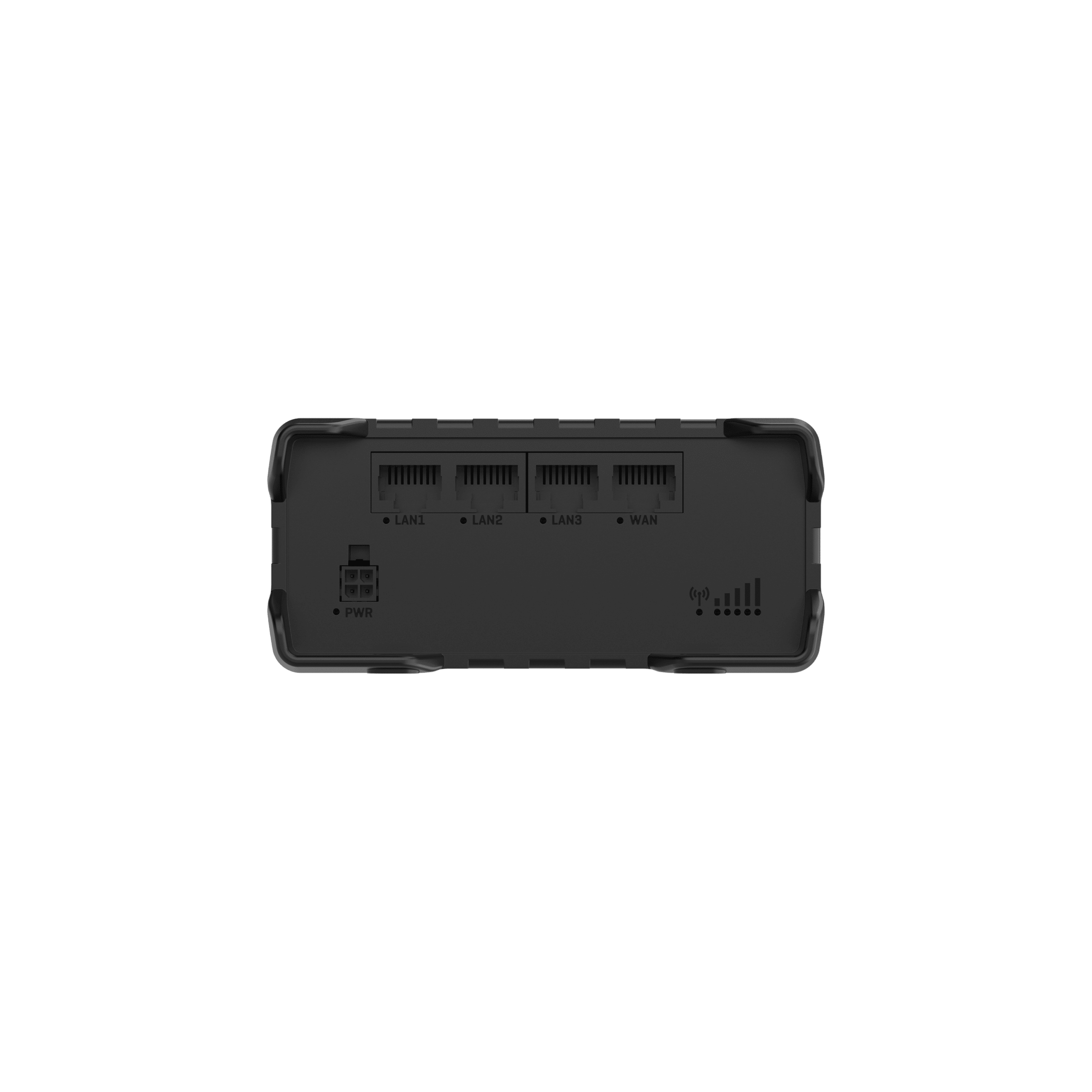

| Ethernet Ports | 4 x RJ45 (10/100 Mbps): 1 x WAN, 3 x LAN, auto MDI/MDIX |
| PoE+ Support | LAN1: 802.3af/at PD (PoE+ in), LAN2/LAN3/WAN: 802.3af/at PSE (PoE+ out), 30W max/port, 90W total, passthrough |
| Routing | Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN |
| VoIP Passthrough | H.323, SIP-alg NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP/ICMP link inspection |
| Firewall | Port forward, traffic/custom rules, TTL target customisation, DMZ, NAT, NAT-T, NAT64, DDoS prevention, port scan prevention, VLAN, mobile quota control, web filtering (blacklist/whitelist), access control, SSL certs (Let's Encrypt, SCEP), 802.1x, TACACS+, RADIUS, IP/login block, random password generator |
| Firewall Status Page | View statistics, rules, rule counters |
| Ports Management | Enable/disable, auto-config, speed config, status |
| Network Topology | Visual representation of network, device connections |
| Hotspot | Captive portal, internal/external Radius, Radius MAC auth, SMS auth, SSO, walled garden, user/group management, 9 customisable themes, external/internal landing page, URL parameters, user scripts |
| DHCP | Static/dynamic IP, relay, server config, status, static leases (MAC wildcards) |
| QoS / SQM | Traffic priority by source/dest/service/protocol/port, WMM, 802.11e |
| DDNS | >25 providers, manual config |
| DNS over HTTPS | Supported |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired failover |
| Load Balancing | Supported |
| SSHFS | Mount remote filesystem via SSH |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Port Mirroring | Supported |
| Authentication | Pre-shared key, digital/X.509 certs, TACACS+, internal/external RADIUS, IP/login block, time-based login blocking, random password generator |
| VPN | OpenVPN (multi-client/server, 27 encryption methods), IPsec (XFRM, IKEv1/v2, 14 encryption methods), GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| OPC UA | Client/Server, TCP |
| MODBUS | Server/Client, TCP, custom register block, 8/16/32-bit INT/UINT, float, HEX, ASCII |
| Data to Server | HTTP(S), MQTT, Azure MQTT, LUA scripting |
| MQTT Gateway | Modbus MQTT Gateway |
| DNP3 | Station/Outstation, TCP |
| DLMS/COSEM | Client, TCP, COSEM object scan |
| API | Teltonika Web API (beta) |
| Monitoring & Management | Web UI (HTTP/HTTPS), FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP (v1/v2/v3), JSON-RPC, RMS |
| IoT Platforms | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core |
| System Characteristics | CPU: Mediatek 580 MHz MIPS 24KEc; RAM: 128 MB DDR2; Flash: 16 MB SPI Flash |
| Firmware/Config | Web UI, FOTA, RMS, keep settings, factory reset, RutOS (OpenWrt), Busybox, Lua, C, C++, SDK, GPL customisation, Package Manager |
| PoE In | LAN1: 802.3af/at PD |
| PoE Out | LAN2, LAN3, WAN: 802.3af/at PSE, 30W max/port, 90W total |
| Power Connector | 4-pin industrial DC socket |
| Input Voltage | 9 – 57 VDC, reverse polarity, surge protection (>58VDC 10us max) |
| Power Consumption | Idle: <5 W, Max: <6.5 W, PoE Max: 100 W |
| Physical Interfaces | 4 x RJ45 (10/100 Mbps), 1 x Digital Input (0–5V low, 8–30V high), 1 x Digital Output (max 30V/300mA, 4-pin power connector), 2 x SIM (Mini SIM - 2FF), 2 x SMA (LTE), 2 x RP-SMA (Wi-Fi), reset button |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile signal, 4 x ETH status, 1 x Power |
| Casing Material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Weight | 287 g |
| Mounting Options | DIN rail, wall mount, flat surface (kits required) |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection | IP30 |
| Regulatory Compliance | CE, UCRF, EAC, UKCA, RCM, WEEE |
| EMC Emissions & Immunity | EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1, EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN 61000-4-11:2020 |
| RF Standards | EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1 |
| Safety Standards | CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020, EN 50665:2017; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018 |
| Package Contents | RUT951 POE+ Router, 18W PSU, LTE antennas, Wi-Fi antennas, Ethernet cable, SIM adapter kit, Quick Start Guide |
