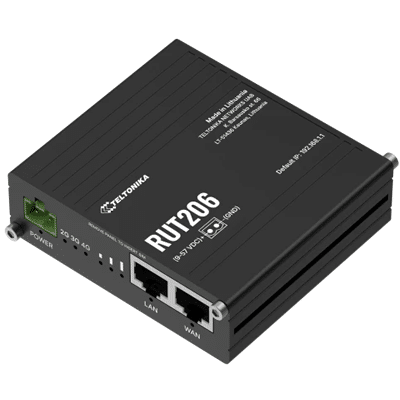

The Teltonika RUT206 is a robust industrial 4G LTE router designed for M2M and IoT applications, ensuring reliable connectivity with advanced security and remote management.
Key Features:
4G LTE Cat 4 with dual SIM failover
WiFi 2.4GHz (802.11 b/g/n)
Ethernet & Serial Interfaces (2 x LAN, RS232, RS485)
NB : The RUT206 router does not come with a mains PSU as it can be powered using POE in LAN1 – if you need a UK Mains PSU then you can order the PR3PRUK6
The Teltonika RUT206 is a compact and cost-effective industrial-grade 4G LTE router designed for M2M (Machine-to-Machine) and IoT applications. With dual SIM failover, WiFi, Ethernet, and serial interfaces, the RUT206 ensures a stable and secure internet connection, even in demanding environments.
Perfect for industrial automation, remote monitoring, CCTV, digital signage, SCADA systems, and smart city applications, the RUT206 is a robust and versatile solution for businesses requiring reliable mobile broadband connectivity.
NB : The RUT206 router does not come with a mains PSU as it can be powered using POE in LAN1 – if you need a UK Mains PSU then you can order the PR3PRUK6
Key Features
4G LTE Connectivity: High-speed mobile internet with LTE Cat 4 support (up to 150 Mbps download, 50 Mbps upload).
Dual SIM Failover: Ensures continuous connectivity with automatic failover between two SIM cards.
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release
Release 9
SIM Switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List
Operator black/white list (by country or separate operators)
Band Management
Band lock, used band status display
SIM Idle Protection
When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless Mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page
View all your firewall statistics, rules, and rule counters
Ports Management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology
Visual representation of your network, showing which devices are connected to which other devices
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS/ SQM
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup
WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover
Load Balancing
Balance Internet traffic over multiple WAN connections
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
Hotspot 2.0
Hotspot 2.0 is a WiFi standard that enables seamless, secure, and automatic connection to trusted wireless networks
SSHFS
Possibility to mount remote file system via SSH protocol
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
Supported Modes
TCP Master, DNP3 Outstation
Supported Connections
RS232, RS485, TCP
DLMS Support
DLMS - standard protocol for utility meter data exchange
Supported Modes
Client
Supported Connections
TCP
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
Teltonika Web API
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Web UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
Flash Storage
32 MB, NOR Flash
Web UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep Settings
Update FW without losing current configuration
Factory Reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Operating System
RutOS (OpenWrt based Linux OS)
Supported Languages
Busybox shell, Lua, C, C++
Development Tools
SDK package with build environment provided
GPL Customisation
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
RS232
RS232 interface without flow control signals
RS485
Half duplex (2-wire) RS485 interface
Events
Email, RMS, SMS
Physical Size
Micro SD (internal)
Applications
Samba share
Capacity
Up to 2 TB
Storage Formats
FAT32, NTFS, ext2, ext3, ext4
PoE Ports
1 x PoE In
PoE Standards
Active PoE input 802.3af Class 0 (12.94 W) on LAN port
