Proroute H900 Global 5G Router with WiFi6 and GNSSS

Proroute H900 5G Router – Global Connectivity, WiFi 6 & GNSS

High-Performance 5G Router for Worldwide Connectivity

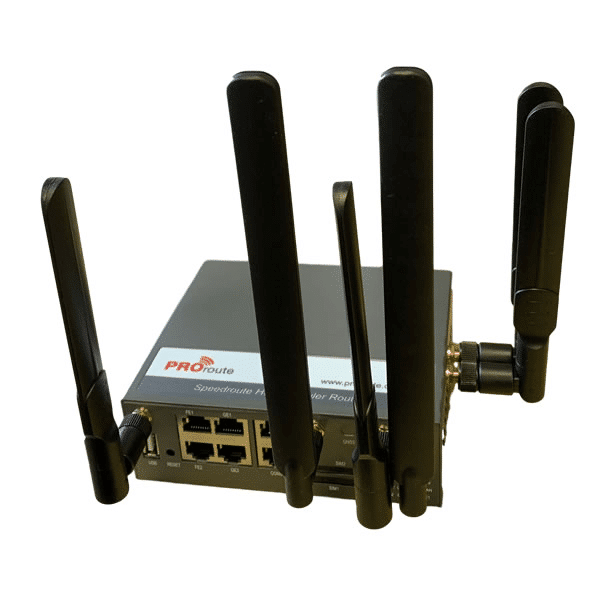

The Proroute H900 is a ruggedized 5G router designed for industrial, enterprise, and vehicle applications. Featuring a global 5G modem (Quectel RM520-GL), WiFi 6, and GNSS positioning, the H900 delivers ultra-fast, reliable, and secure connectivity across 5G, LTE, and 3G networks worldwide.

Key Features:

• Global 5G & LTE Support – The RM520-GL modem supports a wide range of 5G NR, LTE, and WCDMA frequency bands for seamless worldwide deployment.
• WiFi 6 (802.11ax) with Dual-Band Support – Offers high-speed wireless networking with MIMO technology, reducing interference and improving performance for up to 128 simultaneous connections.  (NB : the router supports dual band WiFi with a single SSID – it does not support multiple SSID or Guest WiFi)
• GNSS Positioning (GPS, GLONASS, Galileo, BeiDou) – Ideal for fleet tracking, IoT deployments, and remote asset management.
• Dual SIM & Failover – Ensures continuous connectivity by switching between two SIM cards or WAN connections.
• Gigabit Ethernet Ports – Two Gigabit LAN/WAN ports and three Fast Ethernet ports for high-speed wired networking.
• Advanced Security & VPN Support – Built-in firewall, IPsec, OpenVPN, WireGuard, GRE Tunnel, DMVPN, and content filtering for secure communications.
• Industrial-Grade Build – Designed for extreme environments, with an operating temperature range of -35°C to 75°C, rugged metal casing (IP30 rated), and shock/vibration resistance.
• Power Options – Supports 9-40V DC input

Supported 5G & LTE Bands:

• 5G NSA/SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79.
• LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71.
• LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48.
• WCDMA: B1, B2, B4, B5, B8, B19.

Ideal Applications:

✅ M2M & IoT Deployments – Secure, real-time connectivity for industrial automation, smart city infrastructure, and utility monitoring.
✅ Fleet & Vehicle Networking – GNSS tracking, WiFi for passengers, and dual SIM failover for transportation & logistics.
✅ Retail & POS Systems – Secure transactions and business continuity with automatic failover.
✅ Surveillance & Security – Remote CCTV monitoring over a 5G network with high-speed video streaming.

Technical Specifications:

• CPU & Memory: 880MHz CPU, 1GB RAM, 128MB Flash
• Interfaces:
  • 2x Gigabit Ethernet (10/100/1000Mbps)
  • 3x Fast Ethernet (10/100Mbps)
  • 1x RS232/RS485 Serial Port
  • 1x USB Port
  • 4x Digital I/O Ports
• Antenna Connectors:
  • 4 x SMA for Cellular MIMO
  • 2 x SMA for WiFi
  • 1 SMA for GPS
• Mounting Options: DIN-Rail, Wall-Mount, Desktop
• Power: 5-40V DC input

Package Contents:

✔ Proroute H900 5G Router
✔ Power Adapter
✔ Ethernet Cable
✔ Cellular & WiFi Antennas
✔ GPS Antenna, Serial Cable

💡 Upgrade your connectivity with the Proroute H900 – the ultimate high-speed, industrial-grade 5G router for global applications!
